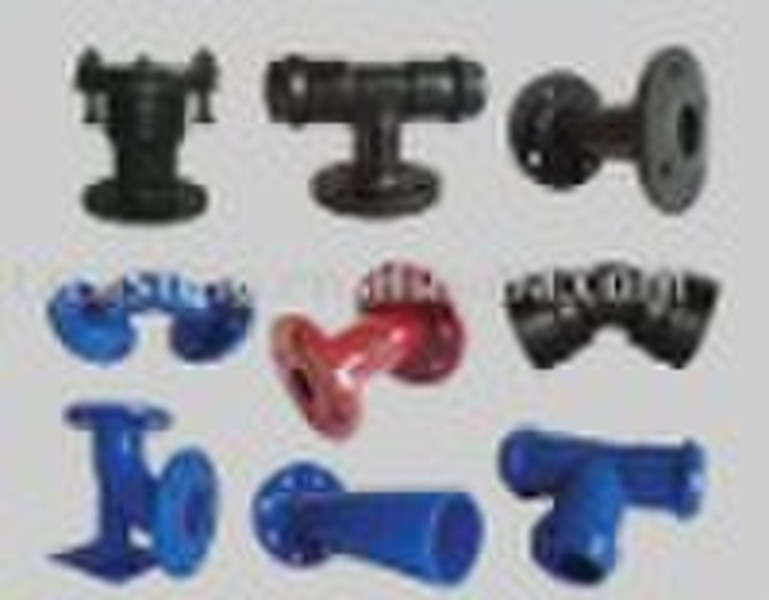

DI Fittings-ISO2531/EN545 Ductile Iron Pipe Fittin

We manufacture ductile iron fitting according to ISO2531,BS EN545,EN598 or BS4772 Material: Ductile Iron or other Ductile Iron Standards:ISO2531,EN545,EN598,BS4772 Coating:Electric-static epoxy in blue,black or red.Customer's request is acceptable also. Packing: Wooden pallets or cases. Mechanical properties: Tensile strength>420mpa Elongation>5% Hardness<250HB Proof stress >300mpa Ductile iron pipe fittings type: Flange Series: double flanged 11.25 22.5 45 90 bend,all flanged tee,flanged bell mouth,all flanged cross, double flanged taper,flanged spigot,blank flange,double flanged 90 long radius bend,double flanged 90 ductfoot bend.loose puddle flanges,allflanged 45 angle branches,all flanged Y pipes, all flanged radial tee,double flanged pipe,flanged spigot. All above fittings Specification are from DN50 to DN1600 except double flange pipe. Double flange pipe: length up to 2000mm, only for DN50-DN200.length 1000mm,DN50-DN1600. Accessories of flanged pipe fittings: Gaskets according with EPDM Bolts & Nuts in Carbon Steel grade 4.8 "T" type pipes fittings: double socket 11.25 22.5 45 90 bend DN80-2000 all socket tee DN80-2000 double socket tee with flanged branch DN80-2000 flanged socket DN80-2000 Accessories of "T" type pipe fittings: Gaskets according with EPDM. "K" type pipe fitting: bolted gland bend 11.25 22.5 45 90 , Class K12 bolted gland concentric tapers,Class K12 flanged and bolted gland socket pieces.Class K12 bolted gland collars Class K12 bolted gland ghange collars Class K12 bolted gland tee, Class K14 bolted gland socket spigot bend(22.5 45 90) Class K12 bolted gland socket spigot tee with flanged branch All above "K" type pipe fittings specification: DN100-500 Accessories of "K " type pipe fittings: Gaskets according with EPDM Bolts & Nuts in Carbon Steel grade 4.8 PVC Connect fitting: PVC Double socket 11.25 22.5 45 90 bend PVC All socket tees PVC Double socket tee flanged branch PVC flanged socket PVC flanged spigot PVC Double socket reducer All above PVC pipe fittings specification: DN50-315 Accessories of PVC pipe fittings: Gaskets according with EPDM.
